ITEMS/MODEL NO.
 SKH-10 SKH-12 SKH-15 SKH-18
DIMENSION OF WORKPIECE(A X B) Ø800×1000L Ø1200×1200L Ø1500×1500L Ø1800×1800L
WEIGHT OF WORKPIECE 500kg 1000kg 1500kg 2000kg
CABINET SIZE □1300×1500H □1700×1900H □1900×2200H □2300×2500H

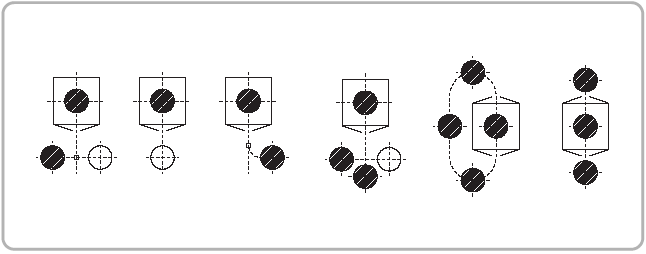

IMPELLER UNIT Ø360×7.5HP×2SET Ø360×10HP×2SET Ø360×15HP×2SET Ø360×15HP×3SET
WEIGHT OF ABRASIVE 180kg/min 240kg/min 360kg/min 540kg/min
DUST COLLECTOR 20㎥/min 35㎥/min 50㎥/min 80㎥/min
